30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter

Name: 30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter
Brand: VIIP WeiAiPu
Price: 1 USD

Brand Name : VIIP WeiAiPu

Model Number : VIP3-31A-10

Certification : CE ROHS Reach TUV

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 2000 pcs within 10-15 days

Packaging Details : 33*33*18

Product name : AC 3 PHASE EMI FILTERS

Rated current : 10A

Rated voltage : 110/250VAC

Type : EMC Filter

Samples : on stock

Delivery Time : 5-10 Days for samples

Input Impedance : 500VDC/100MOHM MIN

Frequency Range : 150 kHz to 30 GHz

Storage Temperature : -40℃~+85℃

Item : EMI filter

Operating Frequency : 50/60HZ

Nominal Center Frequency : 50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions : Varies depending on model

Port : Shenzhen

Termination Style : Solder Pins

Rated Current : Different

Weight : 290g-1000g

Insulation Resistance : ≥100MΩ

Rohs Compliant : Yes

Humidity : ≤95%RH

Contact Now

Industry Air Conditioner 3 Phase EMI Filter Low Pass Noise EMC Filter

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS, TUV

Specification:

Item	3 Phase EMI Filter
Model	3 Phase EMI Filter - VIP3 Series
Original of country	China
Package Type	Surface Mount
Nominal working Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Current	10A
Working Temperature	40°C
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
	110VAC/60HZ 1.4mA
MOQ	5pcs
Port	Shenzhen
Leading Time	3~15 days

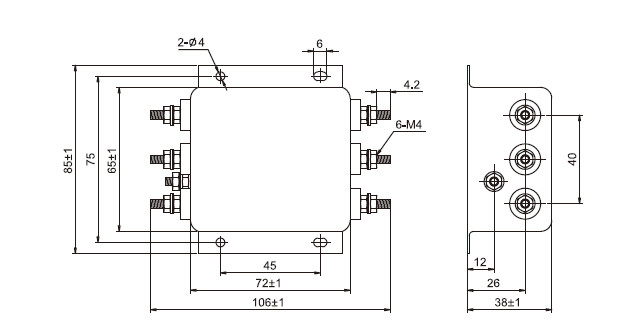

Physical Dimensions

30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter

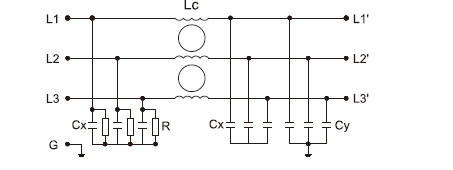

Electrical Schematic

30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter

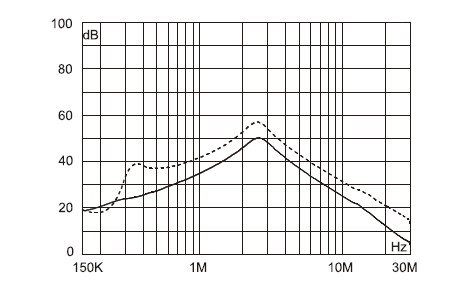

Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter

Specifications:

30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter

Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment

Our Company

We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality

We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.

Free EMC rectification technical support and provide free test sample

Automation technology, scale production, excellent price

Good service, fast delivery!

Cooperate with the top scientific research laboratory

We have a professional R&D team
