60-90dB Inverter EMI Filter 380V 440V 30mhz Low Pass Filter

Name: 6090dB Inverter EMI Filter 380V 440V 30mhz Low Pass Filter
Brand: VIIP
Price: 1 USD

Brand Name : VIIP

Model Number : VIP6-33M-40

Certification : CE TUV UL ROHS REACH

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000 pcs within 10-15 days

Packaging Details : 33*33*18

Name : Inverter emi filter

Rated voltage : 110/250VAC

Rated current : 40A

MOQ : 1 PCS

Type : EMC Filter

Application : texitle equipment

Contact Now

40A 3 Phase Inverter EMI Filter Emi Suppression Filters For Production Automation

Description:

1, Rated currents from 6 A to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

Specification:

Item	INVERTER 3 Phase EMI Filter
Model	INVERTER EMI Filter - VIP6 Series
Transfer Function	Low Pass
Original of Country	China
Nominal working Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Current	40A
Working Temperature	40°C
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
	110VAC/60HZ 1.4mA
MOQ	5pcs
Port	Shenzhen
Lead Time	3~15 days

Specifications:

60-90dB Inverter EMI Filter 380V 440V 30mhz Low Pass Filter

Main Applications:

Specially designed for LCD and PDP TV,medical applications,general electrical appliances

Medical equipment

Test and measurement equipment

Small and medium-sized machines and household equipment

Product Tags:

90dB Inverter EMI Filter 380V

Inverter EMI Filters 380V 440V

380V 440V 30mhz Low Pass Filter

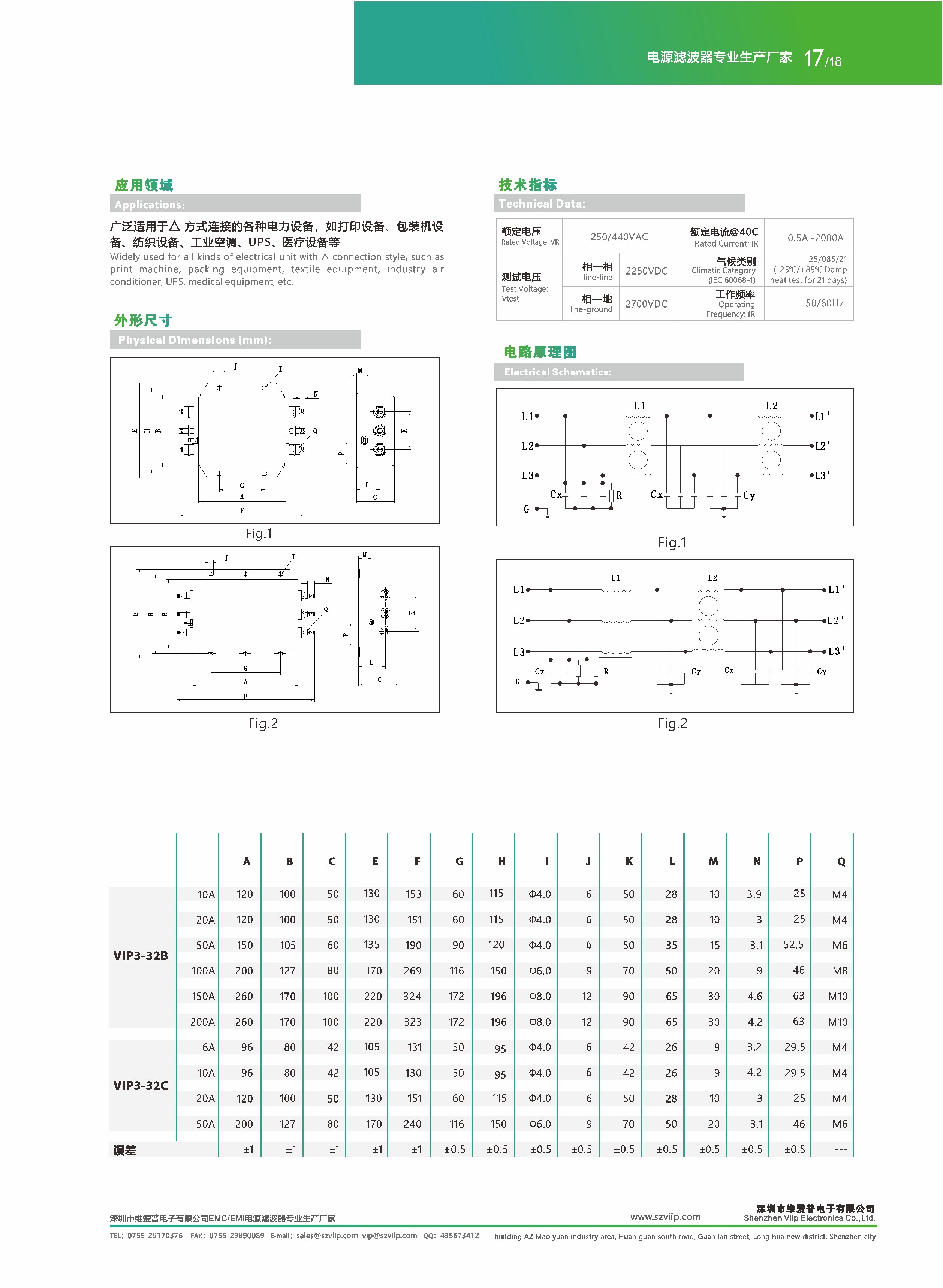

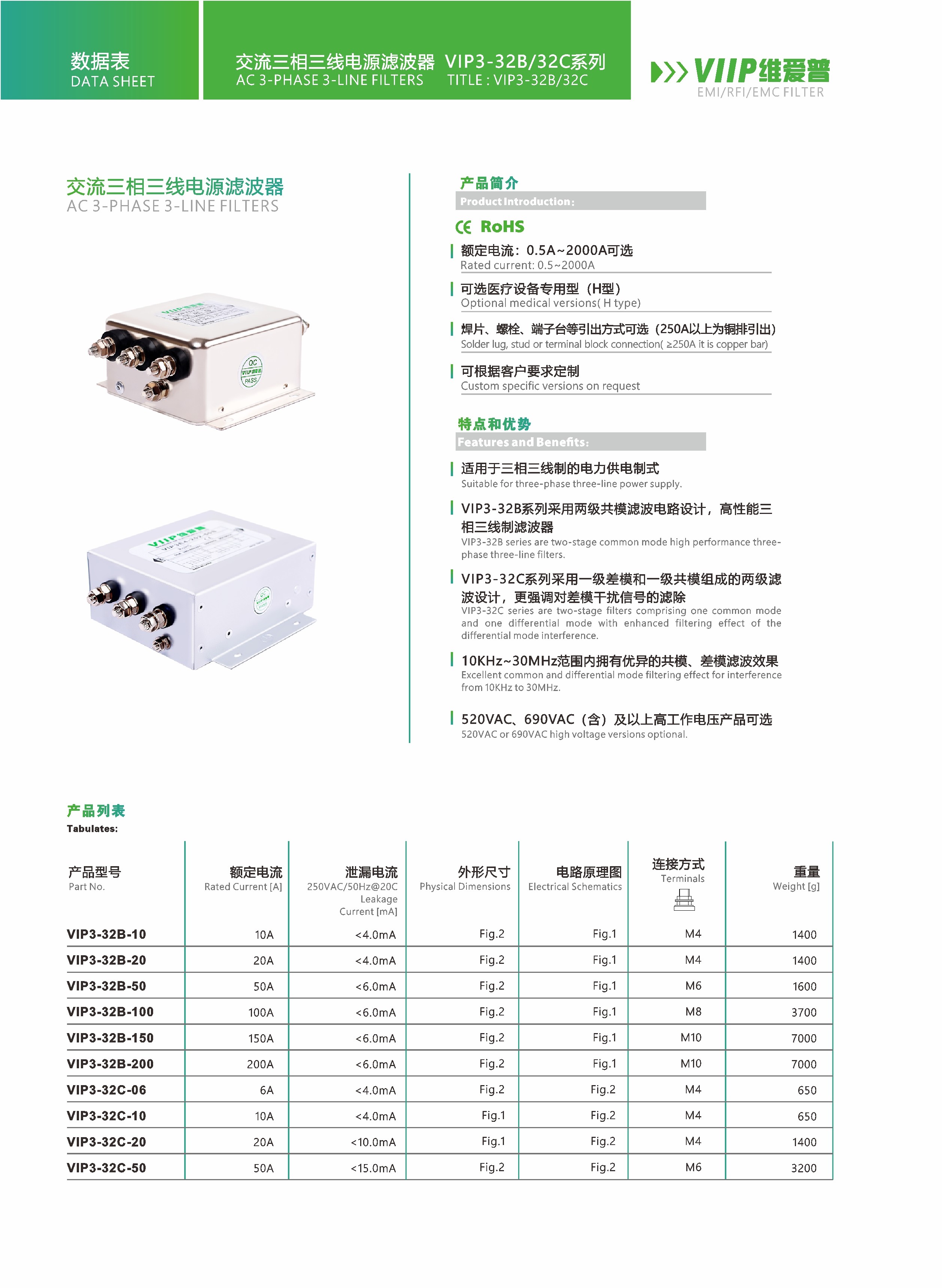

60-90dB Inverter EMI Filter 380V 440V 30mhz Low Pass Filter Images
